- two types of structure and panelling, 50 mm and 60 mm, which allow thermal break classes T2/TB3 and T2/TB2 to be achieved;
- 32 standard sizes with continuous air flow coverage at frontal speed of 2.2 to 2.5m/s;
- customisation of the dimensions in height and width with a 50 mm pitch to meet the most stringent architectural constraints.
- sandwich-type double-sheet panels with injected polyurethane or mineral wool thermal and acoustic insulation in between, thermal cut between the sheets, 50 or 60 mm thick, seven different types of sheet available;
- modular structure with smooth internal surfaces to minimise dust accumulation and facilitate cleaning and disinfection;
- for indoor or outdoor installation with protective roof;
- wide range of air filtration solutions from coarse filters, medium filters with rigid or floppy pockets, absolute, electronic, activated carbon, high and very high efficiency filters;
- germicidal and virucidal solutions with UV-C lamps or photocatalytic oxidation modules;
- static, rotary, run-around heat recovery units;
- water, direct expansion, steam, thermal oil, electric heat exchangers;
- adiabatic humidification systems, self-generated or network steam, water spray, washers;
- internal condensate collection tanks with anti-condensate insulation, with inclination towards the discharge, made of aluminium or stainless steel;
- centrifugal fan sections with belt and pulley drive, plug-fan radial with brushless EC motors, electric fans;
- without control systems or complete with probes, actuators, wiring, electrical panel with control system and unit management logic.

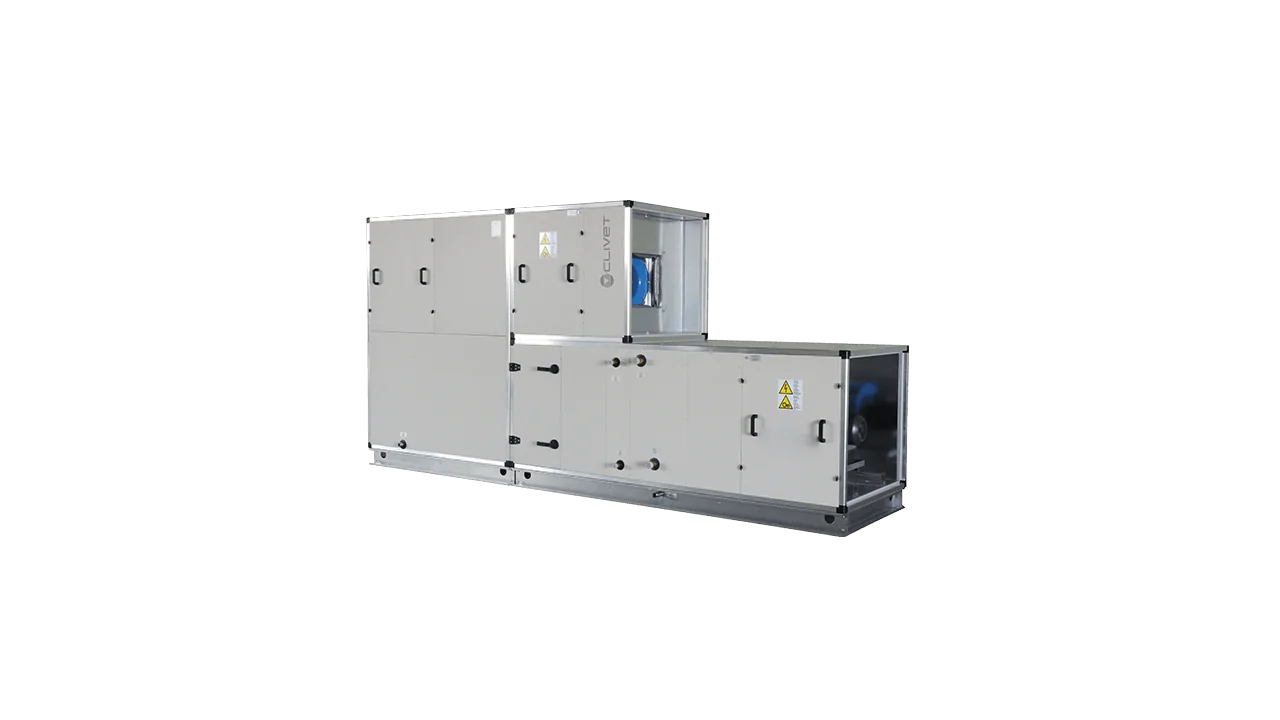

AQX 1-32
