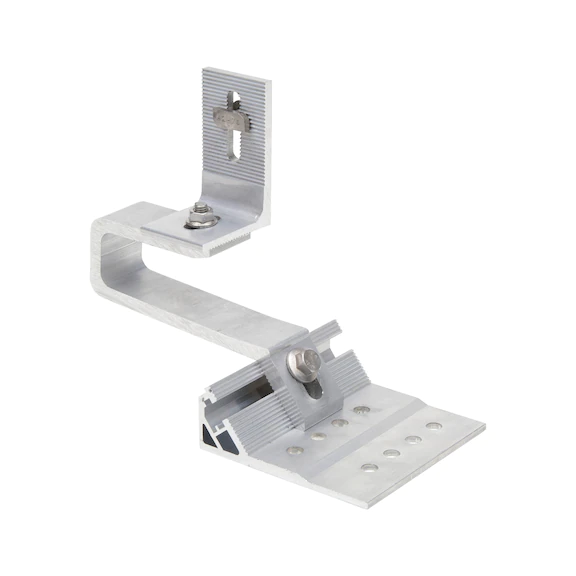

Special type for attaching vertical mounting rails
AluminiumUniversally adjustable
- Variable bar height in roof batten area: 40–51 mm
- Lateral adjustment in roof batten area: 75 mm
- Height adjustment in rail area: Up to 20 mm
Ribbing on bracket
Optimum positive and friction lockingFully pre-assembled
Mounting rail, 39 x 37 mm, 47 x 37 mm, 60 x 37 mm, can be attached to the roof hook without preparatory work.
Maximum load values without resting on roof tiles
- Pressure parallel to roof surface: 0.7 kN
- Pressure perpendicular to roof surface: 1.5 kN
- Tensile force perpendicular to roof surface: -1.5 kN
Notice
We recommend using two ASSYplus pan head wood screws, 8 x 100 mm, A2 stainless steel, to attach each roof hook to the rafters
